B111
B111

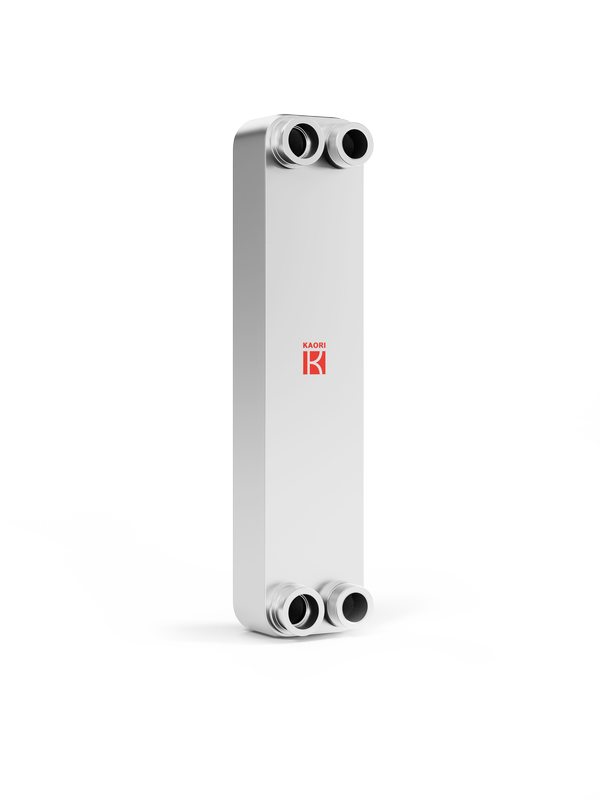

Asymmetric Brazed Plate Heat Exchanger
KAORI B111 design effectively helps to lower pressure drop by 25%, reduce refrigerant filling volume by 44%, increase water flow rate by 19% and cut the weight by up to 48%, these overcome common impact on water-side pressure drop while maximizing system performance, energy efficiency and reliability.
KAORI B1111design has a great benefit on heating, cooling and refrigeration systems that use climate-friendly refrigerants, such as R32, R454B and natural refrigerant R290. Reduces carbon dioxide emissions and equipment operating costs over its lifespan.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Solar Heating
Floor Heating
Snow Melting
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Application：
Evaporator
Condenser
Subcooler
Economizer
Oilcooler
Intercooler
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
140
Working Pressure：
45
Max working temperature：
200
Thickness(mm)：
12.5+1.85*N
Weight(kg)：
4.13+0.017*N
Connection-Male Thread(up to)：
1-1/4"
Connection-Female Thread(up to)：
1"
Connection-Solder(up to)：
1-1/8"
L1(mm)：
526
L2(mm)：
470
W1(mm)：
119
W2(mm)：
63
