B051
B051

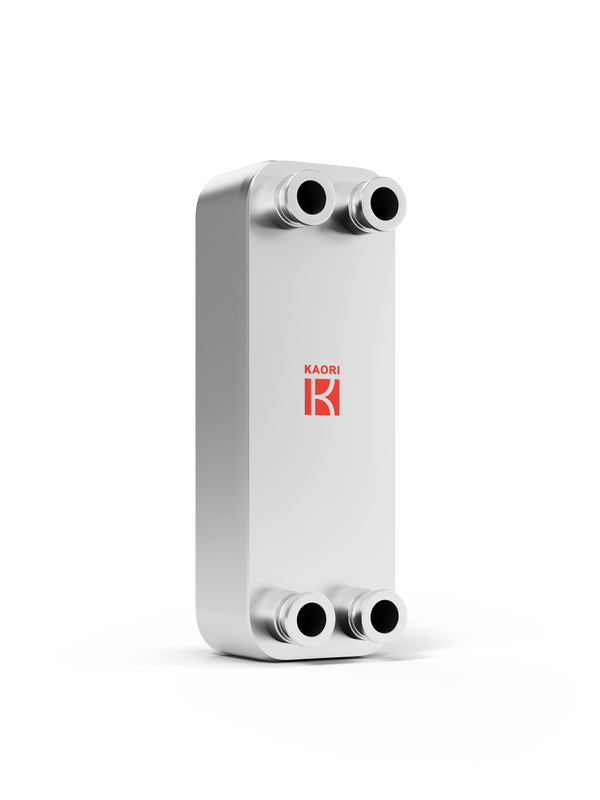

Asymmetric Brazed Plate Heat Exchanger
KAORI B051 design effectively helps to lower pressure drop by 25%, reduce refrigerant filling volume by 44%, increase water flow rate by 19% and cut the weight by up to 48%, these overcome common impact on water-side pressure drop while maximizing system performance, energy efficiency and reliability.
KAORI B051 design has a great benefit on heating, cooling and refrigeration systems that use climate-friendly refrigerants, such as R32, R454B and natural refrigerant R290. Reduces carbon dioxide emissions and equipment operating costs over its lifespan.
Industry：
Chiller
Heat Pump
Reefer / Freezer
Waste Heat Recovery
Fuel Cell
Food Equipment Industry
Pharmaceutical
Process Cooling/Heating
Semi Conductor
Hydraulic Industry
Machine Tool
Bio-Tech
Renewable Energy
Solar Heating
Floor Heating
Snow Melting
District Heating
Boiler
Fluid Cooling/Heating
Data Center Infrastructure
Plastic Injection / Rubber Extruder Machine
Gear Box Heating/Cooling
Application：
Evaporator
Condenser
Subcooler
Plate Material：
SUS316
SUS304
Brazing Material：
Copper
Max number of plates(N)：
120
Working Pressure：
45
Max working temperature：
200
Thickness(mm)：
12.5+1.8*N
Weight(kg)：
2.14+0.089*N
Connection-Male Thread(up to)：
1"
Connection-Female Thread(up to)：
1"
Connection-Solder(up to)：
1-1/8"
L1(mm)：
309
L2(mm)：
250
W1(mm)：
109
W2(mm)：
50
