    D071

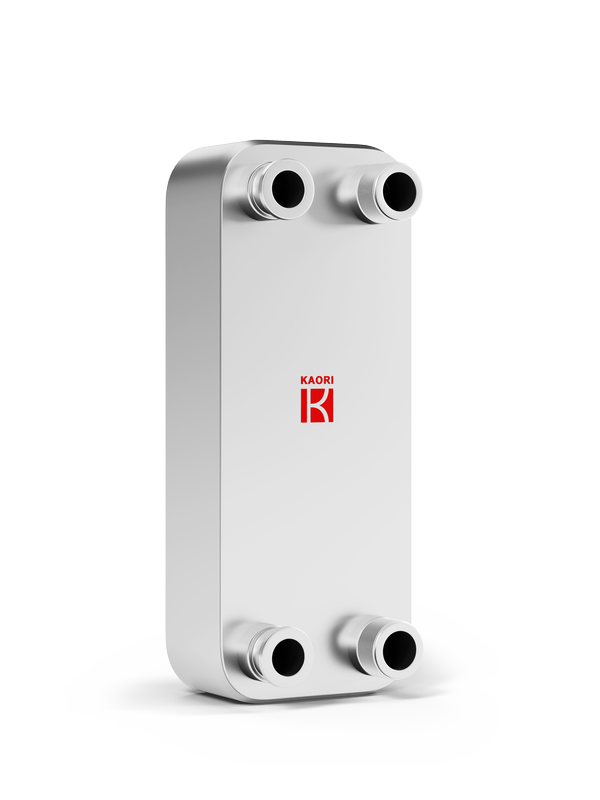

    Double Wall Brazed Plate Heat Exchanger

    In prevention of two different kinds of fluid from intermixing caused by internal leakage, KAORI precisely designed the D071 Brazed Plate Heat Exchanger (BPHE) with the double-stacked plates, to eliminate the possibility of cross contamination. The unique air gap is created between the two plates. Once internal leakage occurs, the 2nd plate becomes a shield to keep fluid stay and flow on the same channel through the air gap. Meanwhile, vent holes outside the plate will seep out fluid as an indication of leakage.

    The patented plate design construction can greatly raise and enforce the safety to use KAORI D071, especially for Residential and Industries where require high and strict safety standard; a visible safety solution.

    Applicable refrigerants: R290(Propane)、R32、R445B、R410A new generation eco-friendly refrigerants.

    Industry： Chiller Heat Pump Pharmaceutical Process Cooling/Heating Solar Heating Floor Heating Snow Melting District Heating Boiler
    Application： Evaporator Condenser Subcooler Economizer Oilcooler Intercooler
    Plate Material： SUS304
    Brazing Material： Copper
    Max number of plates(N)： 80
    Working Pressure： 45
    Max working temperature： 200
    Thickness(mm)： 11.3+2.60*N
    Weight(kg)： 2.65+0.218*N
    Connection-Male Thread(up to)： 1 1/2"
    Connection-Female Thread(up to)： 1 1/4"
    Connection-Solder(up to)： 1 3/8"
    L1(mm)： 306
    L2(mm)： 250
    W1(mm)： 126
    W2(mm)： 70
