Q035
Q035

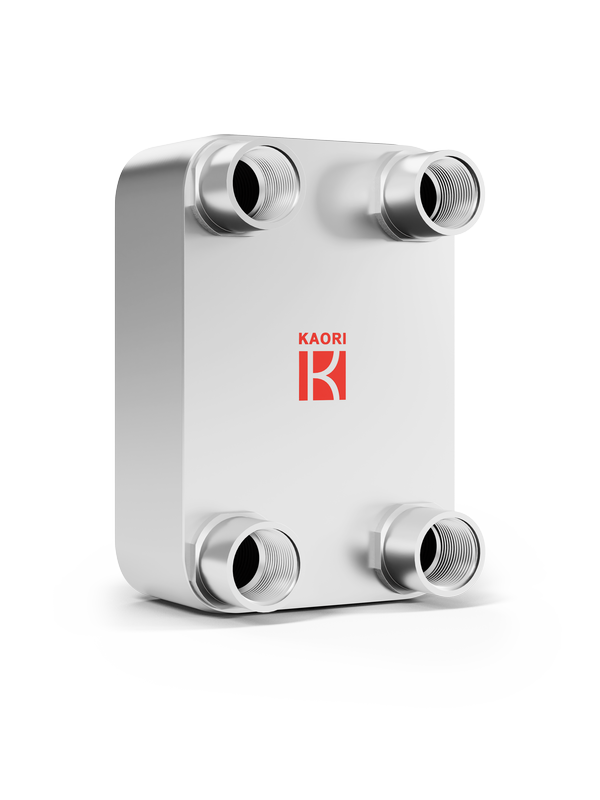

Oil Cooler BPHE
The Q035 Series is specially designed for outstanding oil cooling. The compact Brazed Plate Heat Exchanger is excellent for both new design integration and shell and tube replacement applications.
Q035 Seires sets that increase cooling performance and significantly reduce downtime. Save time and money for the amount of cooling water required for heat transfer which will result in lower operating costs and maintenance.
Industry：
Process Cooling/Heating
Hydraulic Industry
Machine Tool
Fluid Cooling/Heating
Plastic Injection / Rubber Extruder Machine
Gear Box Heating/Cooling
Application：
Oilcooler
Plate Material：
SUS304
Brazing Material：
Copper
Max number of plates(N)：
60
Working Pressure：
30
Min test pressure(bar)：
43
Max working temperature：
200
Plate Heat Transfer Area：
0.01759
Thickness(mm)：
9+2.38*N
Weight(kg)：
1.02+0.084*N
Connection-Female Thread(up to)：
3/4"
L1(mm)：
186
L2(mm)：
143
W1(mm)：
126
W2(mm)：
83
